vineyard post roll forming machine

vineyard post roll forming machine

vineyard post roll forming machine2

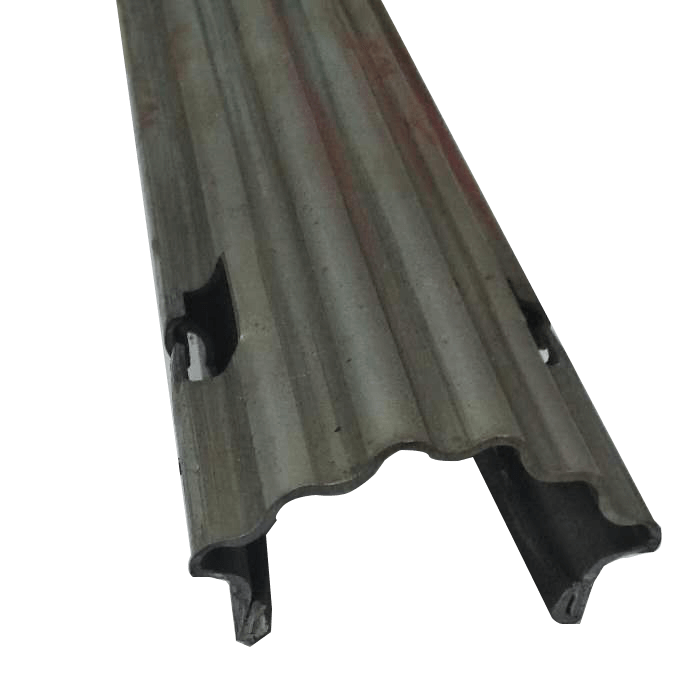

This machine is made to produce posts for vineyard which are widely used in Europe and South America.

Additional information

Coil sheet	0.8-1.5mm thick, cold rolled
Roller material	Gcr15 bearing steel
Rolling steps	Abt 16 stations
Main motor power	11KW
Container	1 * 20’GP

Processing steps

decoiling
material feeding
hole punching
roll forming
cutting
profile collecting

Processing video

Play Video

Decoiler

passive decoiler
Expansion diameter: 480-530mm

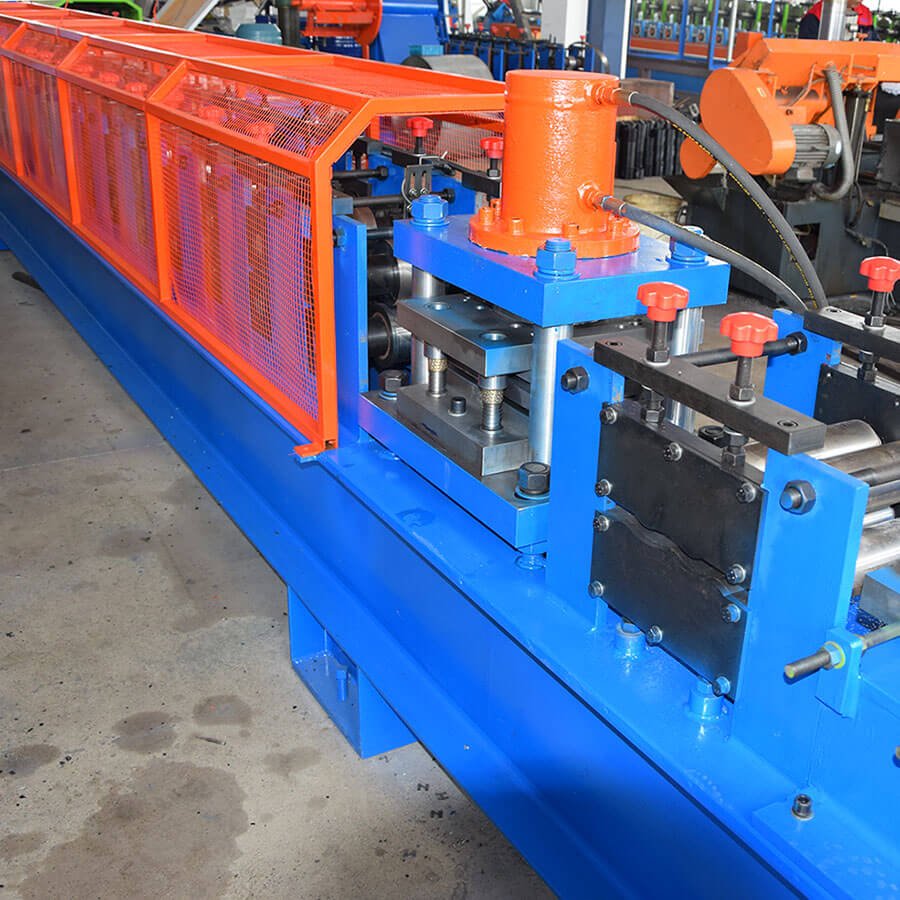

Hydraulic punching

Punching mold: Cr12MOV, vaccum quenching (HRC 58-62)
Hydraulic power station: 5.5KW ( providing power for punching and cutting)

Main Machine

Shafts: Φ60mm, 45# steel, well machined and quenced
Wall panel: 18mm thick, A3 steel
Driving: by chain
Motor: 11KW, WNM
Bearing: HRB (option: SKF/FAG)

Hydraulic Cutting

Cutting blade: Cr12MOV, vaccum quenching (HRC 58-62)

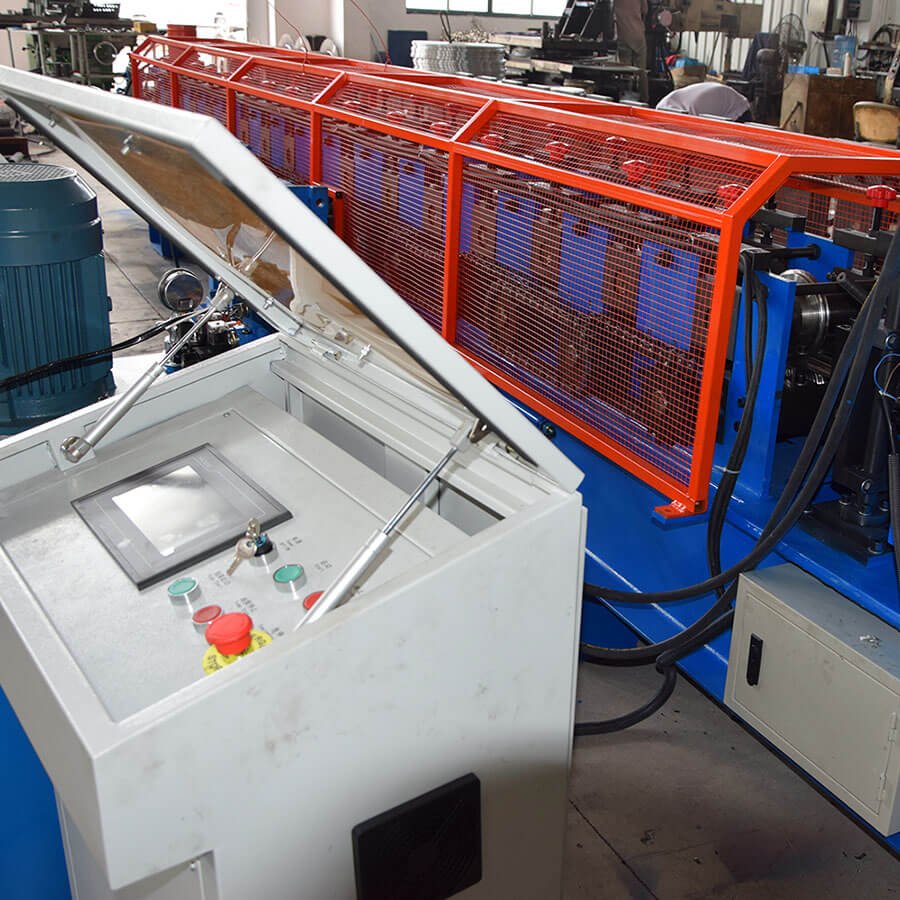

Control Cabinet

PLC: Panasonic Transducer: Yaskawa
Encoder: Omron Touch screen:Mcgs

Other brands of motors and electrical appliances can also be chosen as customer required, such as Siemens and Mitsubishi .
