upright rack roll forming machine

Decoiler

• Bearing capacity: 5 tonne
• Hydraulic power station: 3.7 KW ( for coil expansion)
• Motor: 3KW ( for auto feeding)
• Expansion  : 480-530mm

Leveling Machine

• Rollers: 2 pairs of pinch rollers and 7 leveling rollers
• Motor: 3.7 KW, Yaskawa

Servo Feeder & Press Machine

• Feeder motor: 2.9 KW, Yaskawa
• Press brand: Yangli, JH21-80
• punching mold: Cr12MOV, vaccum quenching (HRC 58-62)

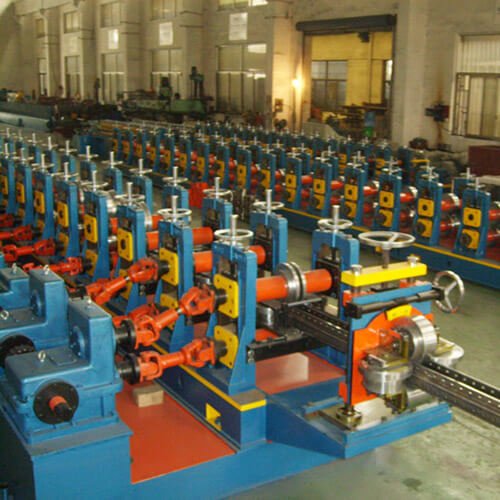

Main Machine

• Shafts: Φ80mm, 45# steel, well machined and quenced
• Wall panel: pillar type
• Driving: by #180 gearbox
• Motor: 30KW, WNM
• Bearing: HRB (option: SKF/FAG)

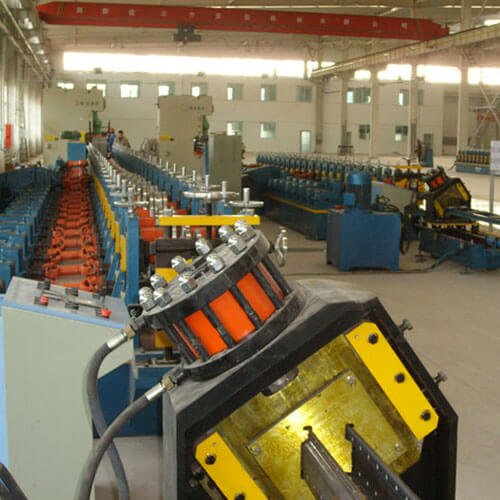

Hydraulic Cutting ( option: saw cutting)

• Cutting blade: Cr12MOV, vaccum quenching (HRC 58-62)
• Hydraulic power station: 7.5KW ( providing power for punching and cutting)

Control Cabinet

• PLC: Panasonic       Transducer: Yaskawa
• Encoder: Omron      Touch screen:Mcgs

Other brands of motors and electrical appliances can also be chosen as customer required, such as Siemens and Mitsubishi .
