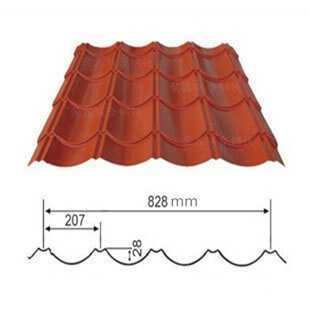

glazed tile roll forming machine-828

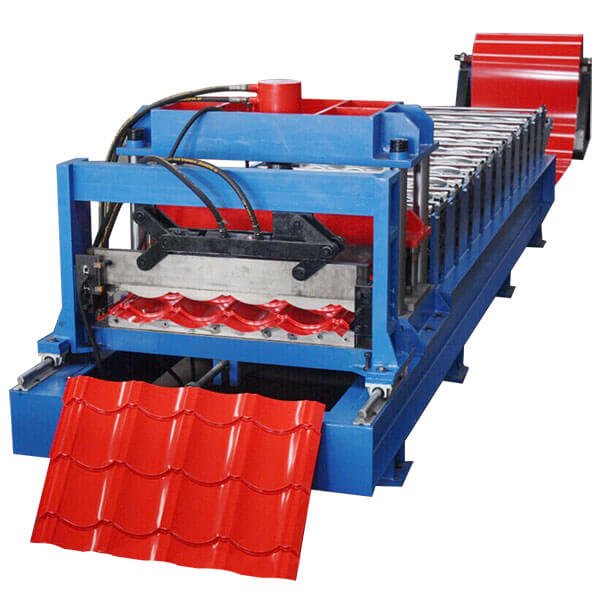

glazed tile roll forming machine

glazed tile roll forming machine2

This machine is made to produce roofing tiles for steel constructions.

Additional information

Coil sheet	0.3-0.8mm thick, colored steel
Roller material	45# steel
Rolling steps	Abt 16 stations
Main motor power	7.5 KW
Container	1*40'GP

Processing steps

decoiling
material feeding
roll forming
cutting
profile collecting

Processing video

Play Video

Decoiler

passive decoiler
Expansion diameter: 480-530mm
Bearing capacity: 5 tonne

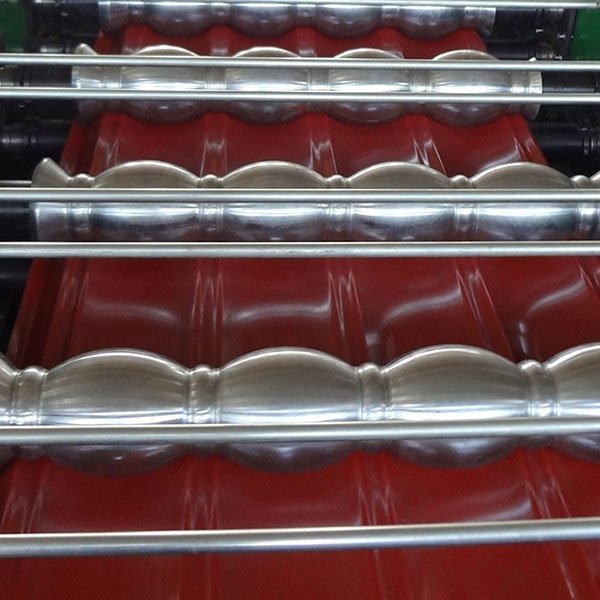

Main Machine

Shafts: Φ70mm, 45# steel, well machined and quenced
Wall panel: 16mm thick, A3 steel
Driving: by chain
Motor: 7.5KW, WNM
Bearing: HRB (option: SKF/FAG)

Step Pressing & Hydraulic Cutting

Pressing mold: T10 material
Cutting blade: Cr12, vaccum quenching (HRC 58-60)
Hydraulic power station: 4KW

Control Cabinet

PLC: Panasonic Transducer: Yaskawa
Encoder: Omron Touch screen:Mcgs

Other brands of motors and electrical appliances can also be chosen as customer required, such as Siemens and Mitsubishi .
