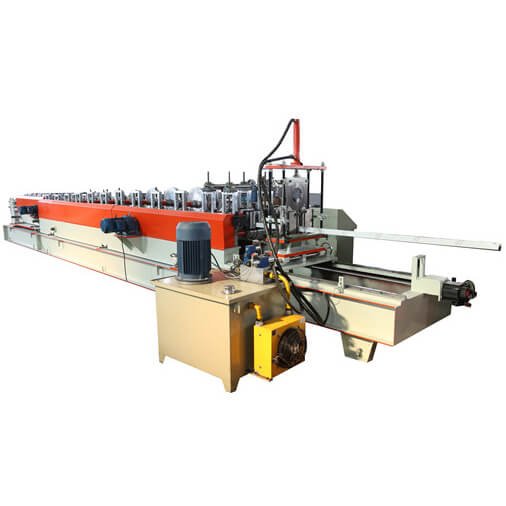

aluminum ventilation channel roll forming machine

aluminum ventilation channel roll forming machine

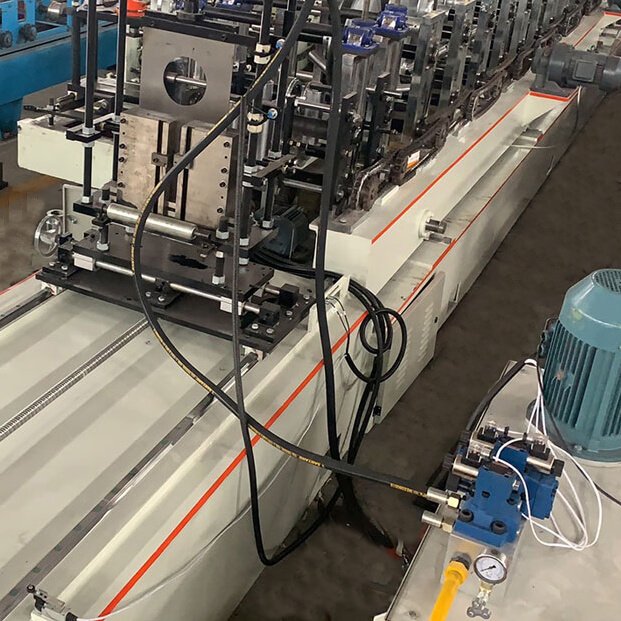

cutting unit of aluminum ventilation channel roll forming machine

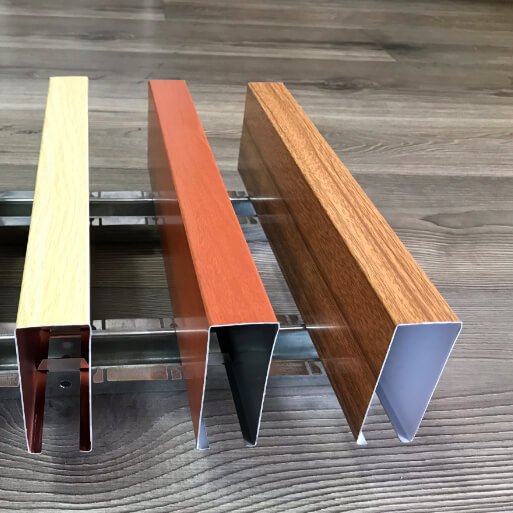

This machine is made to produce U channel pieces used for ventilation.

Additional information

Coil sheet	0.4-0.8mm thick, galvanized steel
Roller material	45# steel
Rolling steps	Abt 15 stations
Main motor power	5.5KW
Container	1 * 20’GP

Processing steps

decoiling
material feeding
roll forming
cutting
profile collecting

Processing video

Play Video

Decoiler

passive decoiler
Expansion diameter: 480-530mm
Bearing capacity: 3 tonne

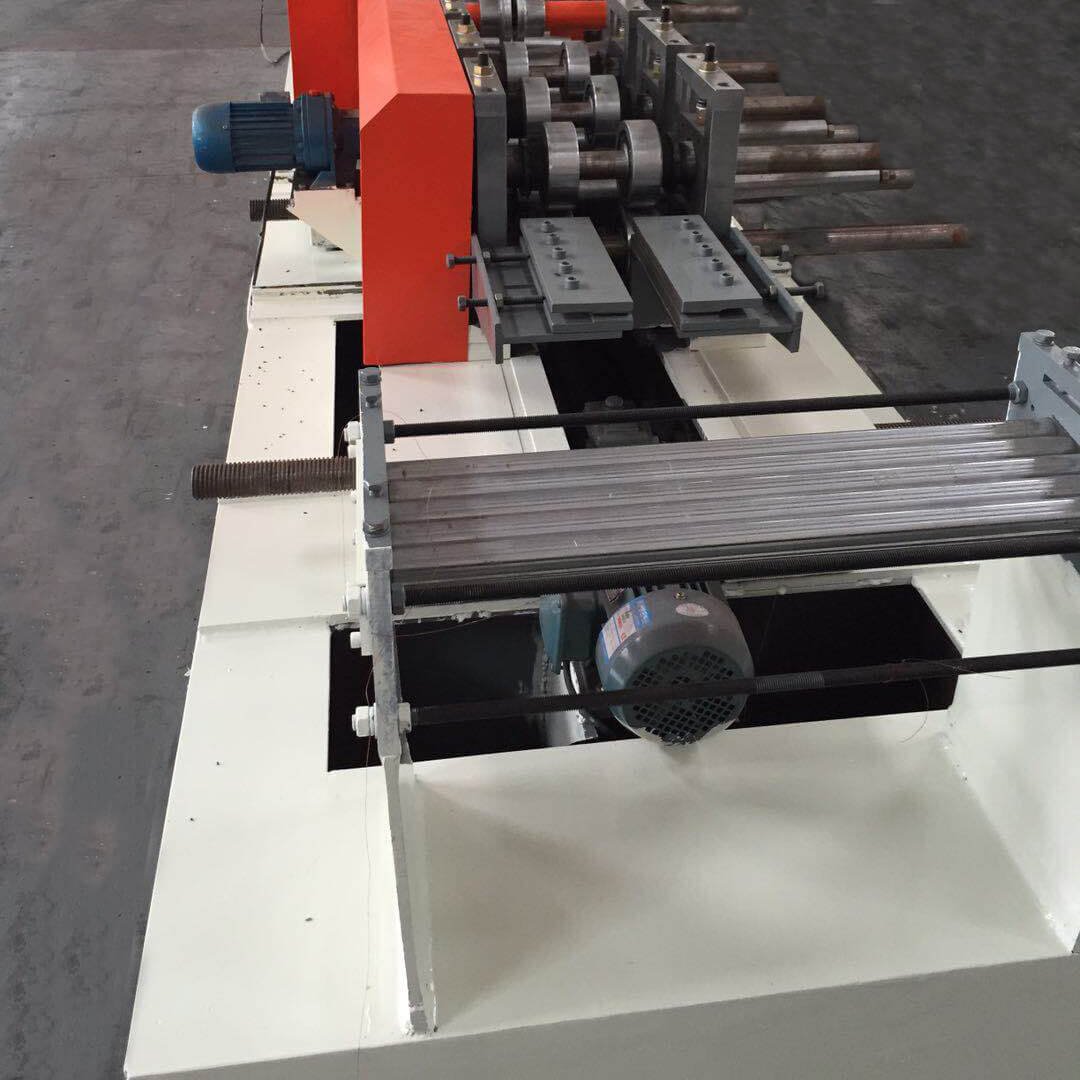

Main Machine

Shafts: Φ60mm, 45# steel, well machined and quenced
Wall panel: 18mm thick, A3 steel
Driving: by chain
Motor: 5.5KW, WNM
Bearing: HRB (option: SKF/FAG)

Hydraulic Cutting

Cutting blade: Cr12, vaccum quenching (HRC 58-60)
Hydraulic power station: 3 KW
Cutting method: nonstop cutting (auto-tracking)

Control Cabinet

PLC: Panasonic Transducer: Yaskawa
Encoder: Omron Touch screen:Mcgs

Other brands of motors and electrical appliances can also be chosen as customer required, such as Siemens and Mitsubishi .

Providing machines and products with a mix of quality and value.
